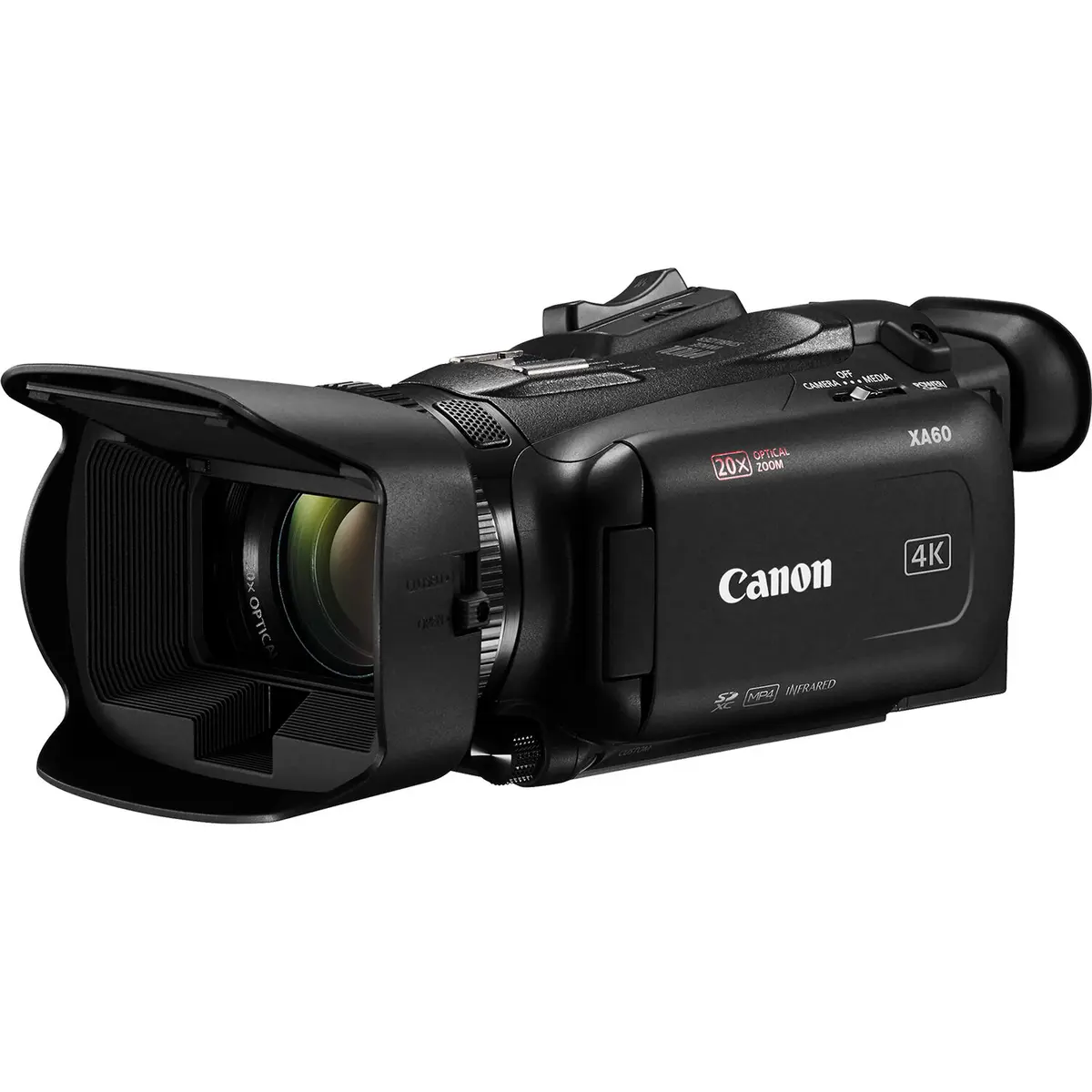

Canon XA60B Professional UHD 4K Camcorder

Item No. 80015853

03230-00107-00

$1,639.00

Description

Overview

Sensor
1/2.3-type CMOS
Filter
RGB Primary Colour Filter
Total Pixels
Approx. 21.14MP
Effective Pixels per Sensor
Approx. 8.29 MP (3840 x 2160)
Subject Illumination Range
Approx. 0.3 lx to 100,000 lx
Minimum Illumination (PAL)
P (Program AE) Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On)
Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.)

Zoom Ratio
20x Optical
Focal Length (35mm Equivalent)
Approx. 29.3 - 601mm Standard IS/IS Off
Minimum Focus Distance
1 cm at wide end, 60 cm across entire zooming range
Max. Aperture
f/1.8 - 2.8 (AV Priority and Manual Modes)
Aperture Blades
8 blades
Filter Diameter
58mm
Image Stabilization System
Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
ND Filter
Built-in gradation filter (Auto or Off)
Zoom Control
Zoom rockers on body and handle;
Selectable manual zoom/focus ring on lens;
Selectable High Speed and Soft Zoom modes available.
Zoom Speed
Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
Focus Control
MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF)
Focus System
Hybrid AF (High Speed/Medium speed). Uses combination of TTL-video signal detection system and external phase difference metering system.
Normal AF. TTL, Contrast based AF
Iris Control
Touchscreen, Auto
Digital Zoom/Teleconverter
20x digital zoom (400x with optical zoom) and 40x digital zoom (800x with optical zoom) are available. Digital zoom not available in AUTO mode. 2x Digital Teleconverter

Video Storage Media
SD/SDHC/SDXC card (2 card slots)
Recording Time
150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
Recording File System
FAT32/exFAT
Internal Recording Format (PAL)
XF-AVC:
3840 x 2160 / 25.00P (160 Mbps)
1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
MP4:
3840 x 2160 / 25.00P(150 Mbps)
1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
External Recording Output
HDMI output (When Shooting):
UHD recording mode:
1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode:
1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
Slow/Fast Motion (PAL)
3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 25.00P: x0.5
Pre-Record Function
Yes. 3 seconds
Still Photos
JPEG up to 3840x2160
(Still image resolution is dependent on the video resolution)
Photo Storage Media
SD Card

Display Type
Capacitive LCD touch panel
Size
3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
Wave Form Monitor
No
Focus Assist
Peaking / Magnify
Peaking
Selectable Peaking Colour: Red / Blue / Yellow
Zebra
70% or 100% reference level
Markers
Grid (white/grey), Level (white/grey), 4:3 (white/grey)

Size
0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
Correction Lens
+2.0 to -5.5 dioptre

Audio Input
3.5mm microphone input jack (Supply Voltage 2.4V DC)
Built-in Mic
XLR 3-Pin jack x2 with: With HDU-4 Handle Unit (HDU-4 Handle unit sold separately)
Headphone Output
3.5mm stereo mini jack
HDMI Output
HDMI^TM mini connector
USB
Type-C
Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
SDI Output
No
Time Code
Rec Run / Free Run
Genlock
No
LAN
No
AV Terminal
No
DC Input
USB-C
Remote Control Terminal
2.5mm mini jack

Exposure Metering
Center-weighted average metering
AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
Segment evaluative metering
Night Scene, Snow, Beach, Sunset, Spotlight modes
No metering in Fireworks mode: Exposure constant
Exposure Compensation
Highlight AE, Normal, Exposure lock, Auto backlight compensation.
Exposure Lock
Yes.
Auto ISO / Auto Gain Control Setting
Auto / Manual
Auto Gain Control Limit
0 - 23dB (1dB increments)

Wi-Fi
No
GPS Information (Optional Accessory)
Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
(requires the optional GPS Receiver GP-E2)

Auto
Yes
Preset
Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
Manual Setting
Colour Temperature range: 2,000–15,000K
Default value for Set 1 and Set 2: 5,600K

Program AE
AUTO mode
M (Manual) mode
P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode
Custom Picture Menu
C1: Normal (BT.709 Normal / BT.709)
C2 to C6: USER02 to USER06
Look Settings
Standard
(Adjustment: Sharpness, Contrast, Colour Depth)
Colour Matrix Settings
Neutral: accurate colour reproduction
Video: Higher contrast colour reproduction
Infrared Shooting Mode
Yes (green or white)
Built-in IR Lamp
Optional accessory HDU-4 Handle Unit required

Recording Format
MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio Control
Manual/Auto
Independent level control per channel (-∞ to +18 dB);
Independent audio limiters (2 ch);
Input mic trimming
Reference Tone
1KHz, -12dB / -18dB / -20dB / Off
Microphone Attenuation
On/Off (20dB)
Microphone Level Meter
Yes

Supplied
Lens hood with barrier, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable

Availability: In Stock
