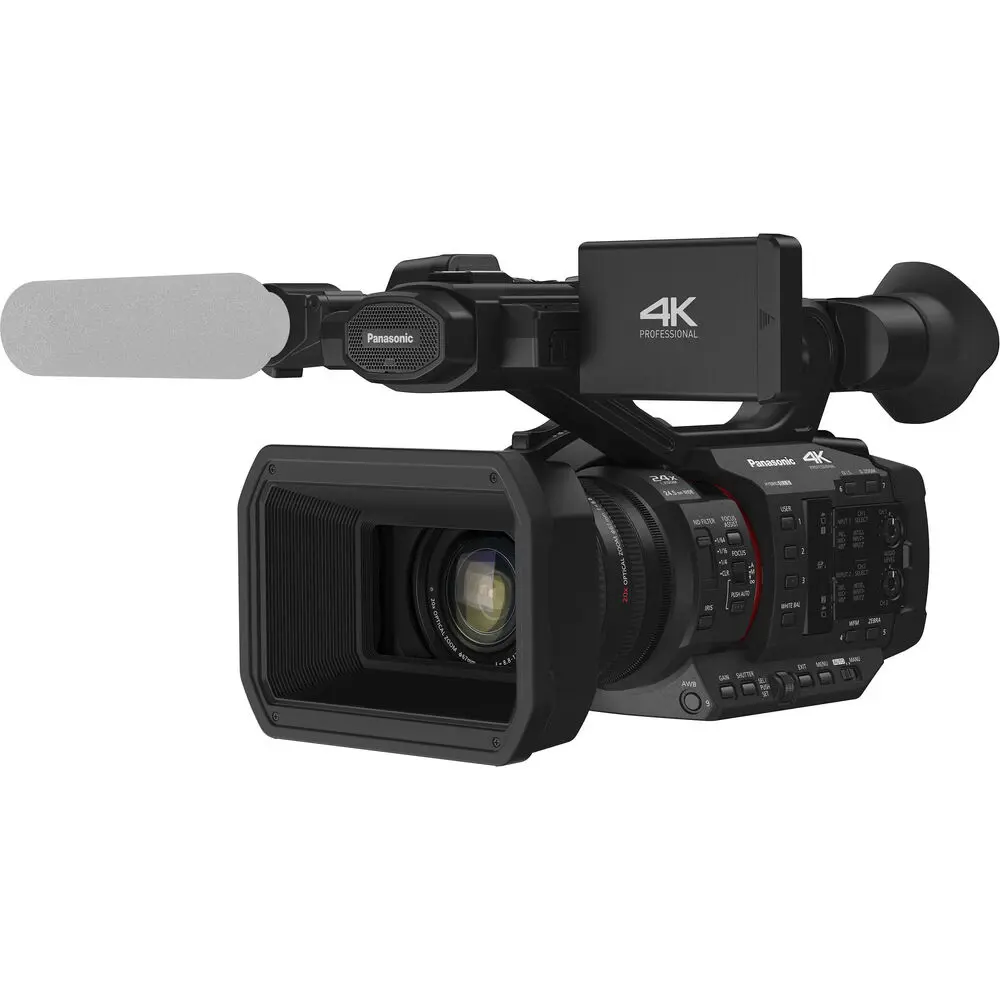

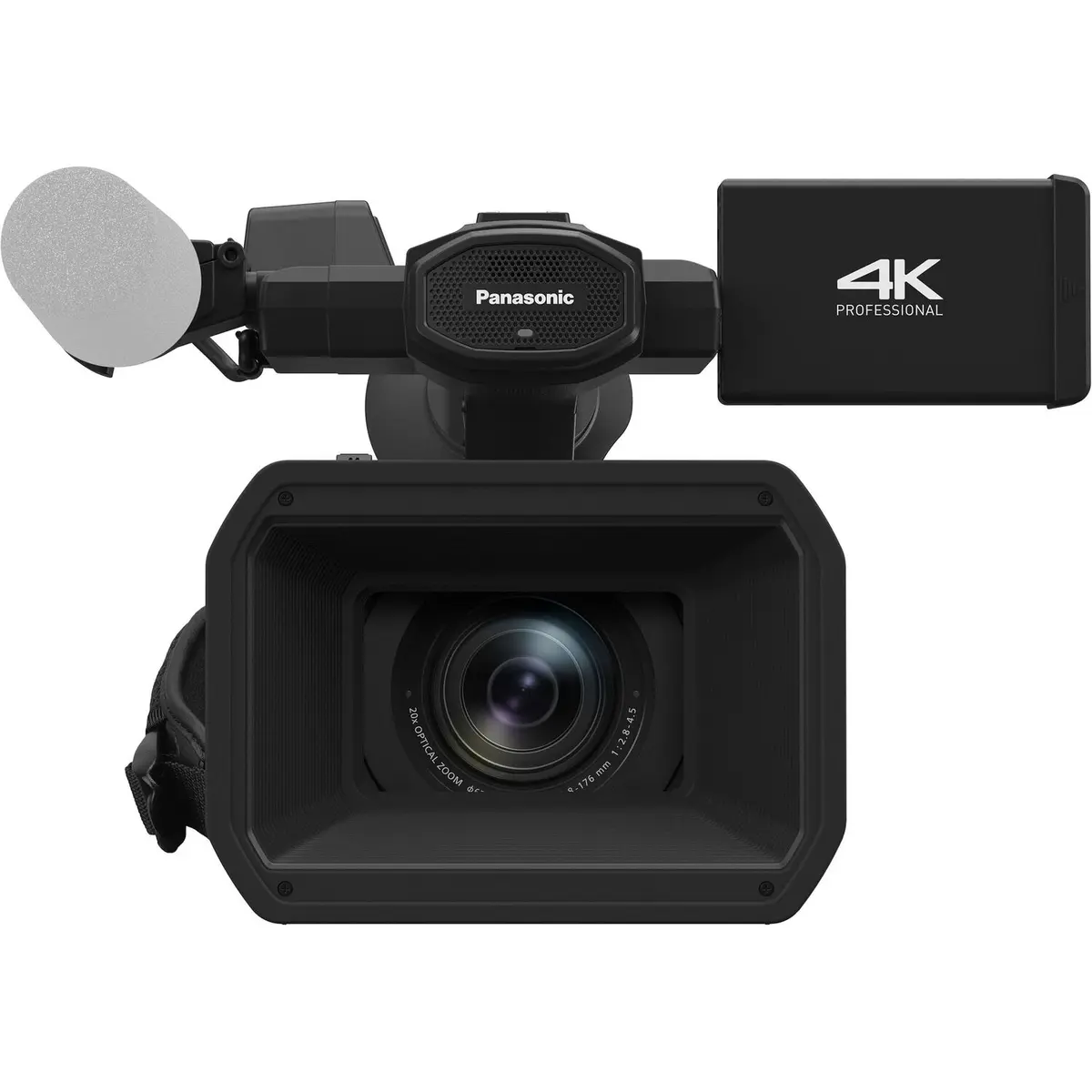

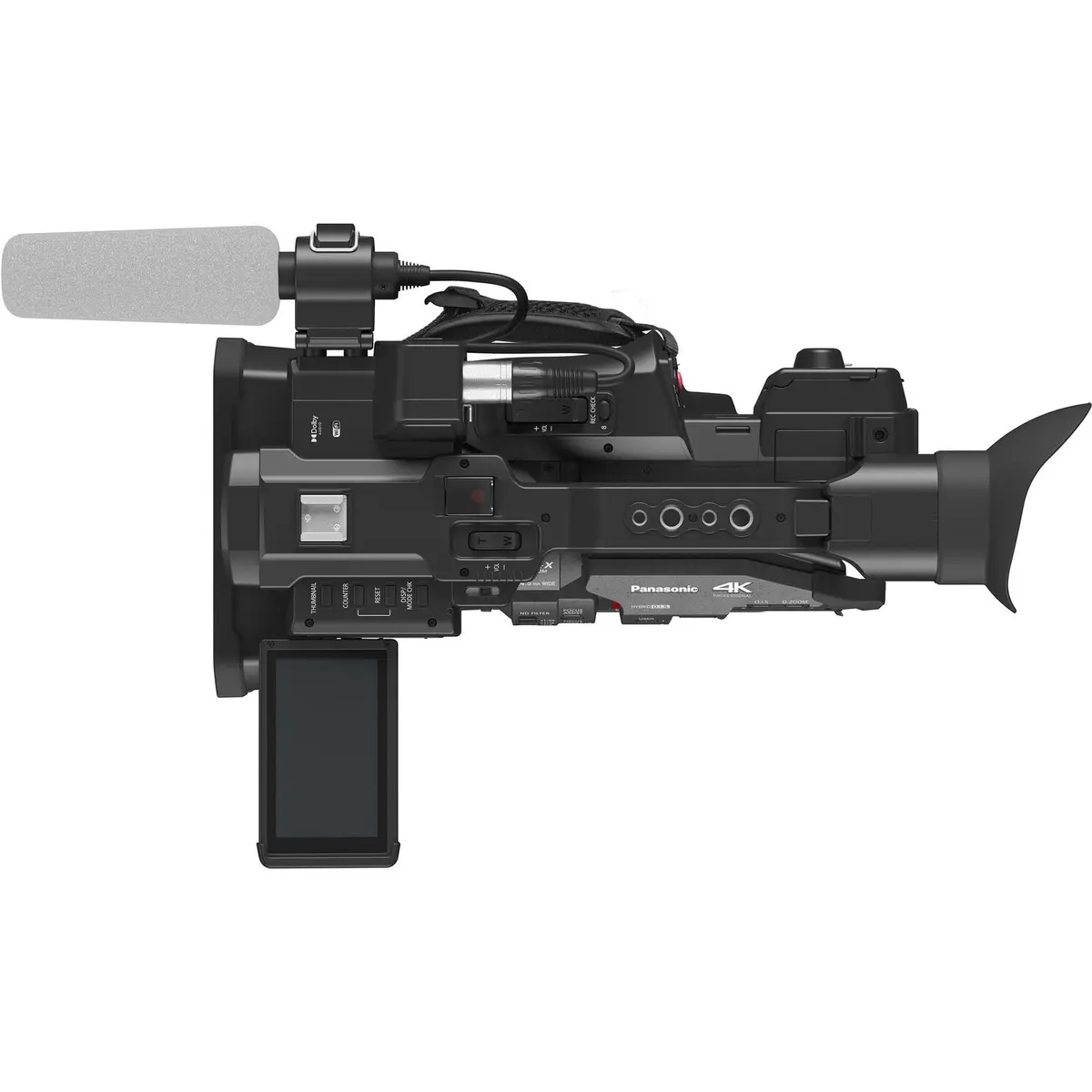

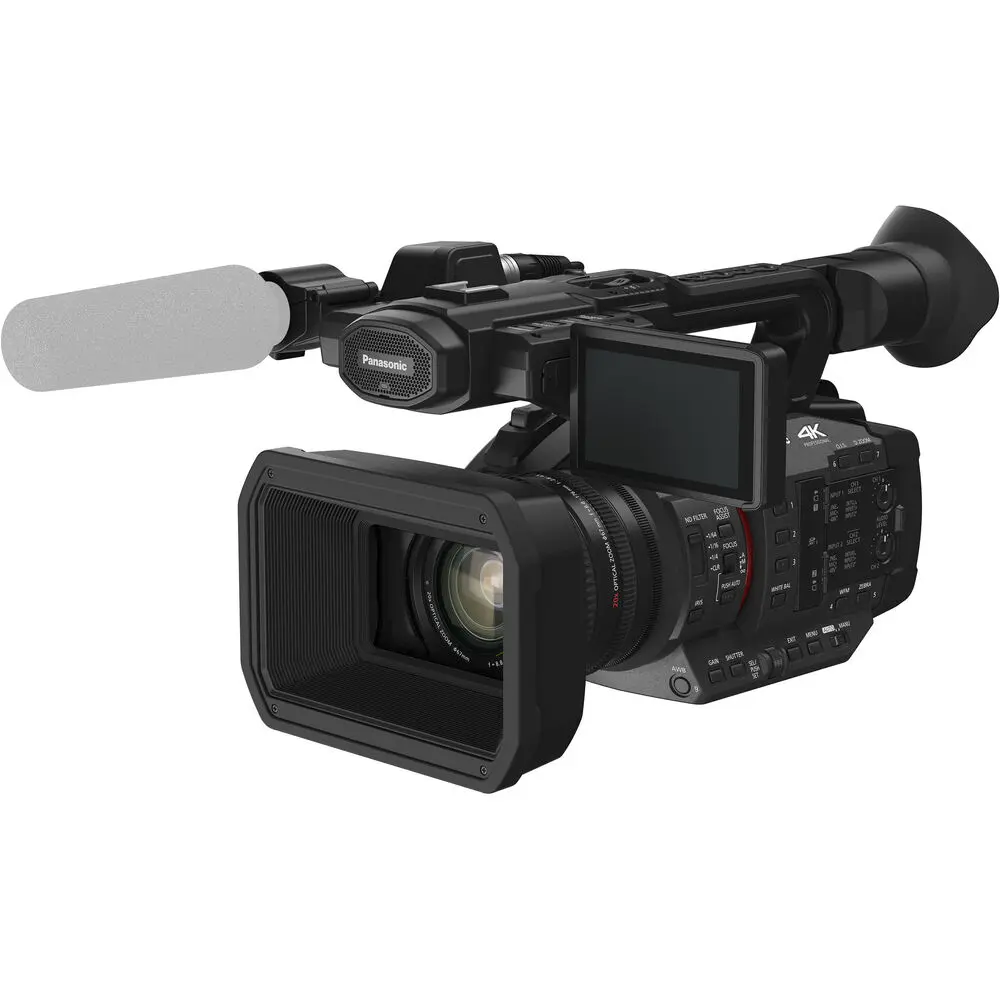

Panasonic AG-X20 4K Professional Camcorder

Overview

Bring your mobile sports, event, or documentary video productions into the world of 4K with the Panasonic HC-X20 4K Mobile Camcorder. Featuring a large 1" 15.03MP 4K sensor, the HC-X20 can record high-quality, professional-grade video in up to UHD 4K (3840 x 2160) 10-bit 4:2:2 resolutions. You can also record 1080p in VFR (variable frame rate) in 10 increments from 2 to 60 fps, as well as record HD video in a super-slow-motion mode at a frame rate up to 120 fps. The X20 also features numerous enhancements to its high-speed AF with face detection, a brighter monitor, UHD 4K image stabilization, and built-in Wi-Fi.

Whether producing event or ENG-style videos or live streaming, the 20x optical zoom power of the lens starts from a wide 24mm equivalent FOV for shooting in tight spots or grabbing impressive establishing shots, and it extends out to 32x i.Zoom for getting in tight on far-away subjects. The X20 also features built-in Wi-Fi that allows you to live stream via RTMP/RTSP so you can stream using popular content providers such as YouTube or Facebook Live. You can also wirelessly remotely control the X20 using a tablet or smartphone with a free-to-download Panasonic app.

While 4K video formats may seem daunting, the X20 manages to record them onto convenient SD cards (U3 rated or faster cards are required for video bit rates above 100 Mb/s) that are both small and robust. Two card slots are provided for increased flexibility. You can record to both cards simultaneously, either for backing up or recording high and low bit rate files or enable relay recording to capture a single file that spans multiple cards for longer recording times.

Ergonomically, the X20 features a compact handheld camcorder body with plenty of customizable control buttons for quickly accessing essential functions. When handheld, the sharp OLED EVF is within easy reach, and a high-bright 3.5" touchscreen is offered for monitoring and menu control; and both can be used simultaneously. Waveforms and scopes can be displayed to aid in exposure control. Atop the handgrip sits a large zoom rocker for precise zoom control. Lens functions can also be controlled manually using the three lens rings, one for focus, one for zoom, and one for iris. A 5900mAh battery for powering the X20 is included, along with a charger and a power supply for fixed-position operating.

High-Definition 4K Imagery with 1" MOS Sensor
This effective 1" MOS Sensor (15.03MP) combines ideal depth of field with balanced image quality and sensitivity.
Live Streaming
Ideal for news, sports, and events, the X20 features a Wi-Fi connection for streaming and wireless camera control. It supports RTMP (Real Time Messaging Protocol), the protocol used when streaming with Adobe Flash, and it is RTSP/RTP/RTMP/RTMPS compatible using H.264/MPEG-4 AVC/AAC-LC compression. It supports streaming distribution of RTMP-compatible content, such as live video distribution services, and it records (with modes below FHD) onto SD cards in the camera is also possible while streaming.
Wireless Remote Control
A 2.4 GHz Wi-Fi module is built-in, so there is no need to purchase a separate wireless LAN module. Wi-Fi connection is possible using only the main unit. A tablet/smartphone with the HC ROP (available for free on Apple's App Store or Google Play) can be used for wireless remote control. The app can be used to control up to eight cameras.
4-Drive Lens System
The 4-Drive Lens System simultaneously and independently drives 4 lens groups (group 2, iris, group 3, group 4). The lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power, maintaining a compact body. The lens features an f/2.8 to 4.5 aperture range and a focal length range from 8.8 to 176mm.
5-Axis Hybrid O.I.S.
In both UHD/FHD modes, in addition to Optical Image Stabilization (O.I.S.), Electronic Image Stabilization operates to detect and correct handshake in the 5-axis direction, including rotational blurring. This provides powerful correction in unstable situations, such as low-angle and high-angle shooting.

Key Features

• Up to UHD 4K60 Video with Live Streaming
• 15MP 1" MOS Sensor, 5-Axis Hybrid OIS+
• 20x Optical Zoom, 4K 24x/HD 32x i.Zoom
• Built-In Wi-Fi, 120 fps Slow Motion
• Handle with 2 x XLR Audio Inputs
• Built-In ND Filters, Wired Remote Option
• Up to 10-Bit UHD 4K60 4:2:0 & 4K30 4:2:2
• Records MP4, MOV, AVCHD to Dual SD Slots
• Wide 25.4mm Lens, 3.5" LCD Screen
• High-Speed AF with Face Detection

In The Box

• Panasonic HC-X20 4K Mobile Camcorder
• Power Supply
• Power Cable
• 5900mAh Battery
• Battery Charger
• Microphone Holder
• Microphone Holder Screw Set
• Input Terminal Cap
