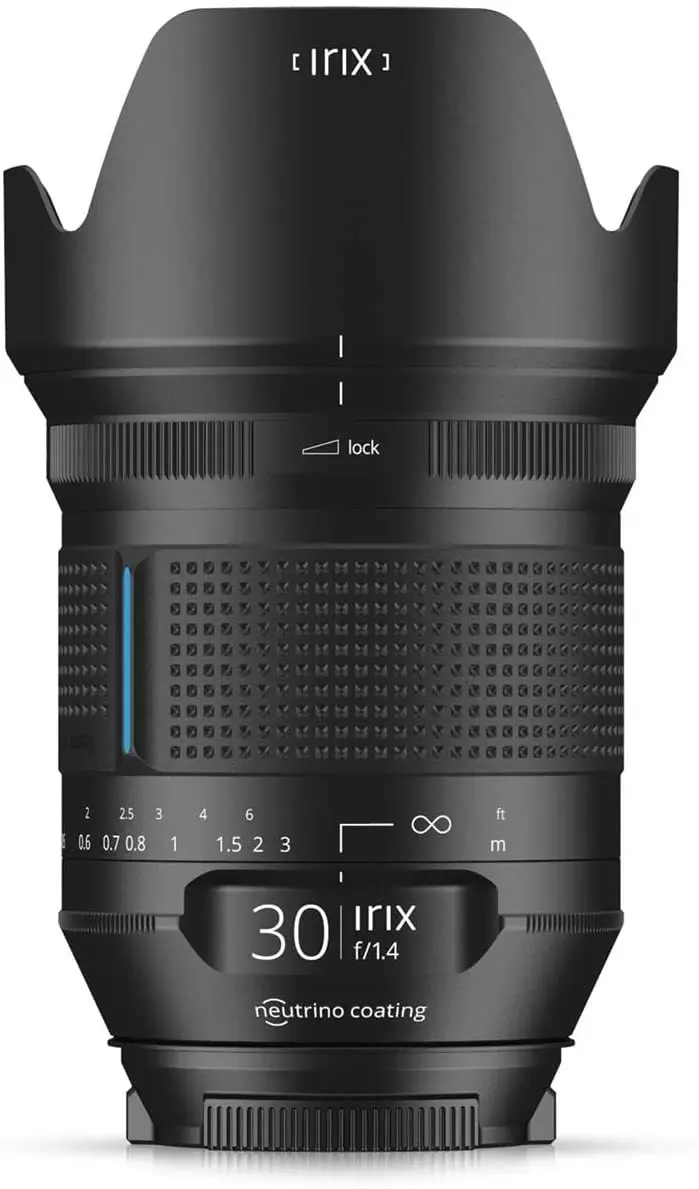

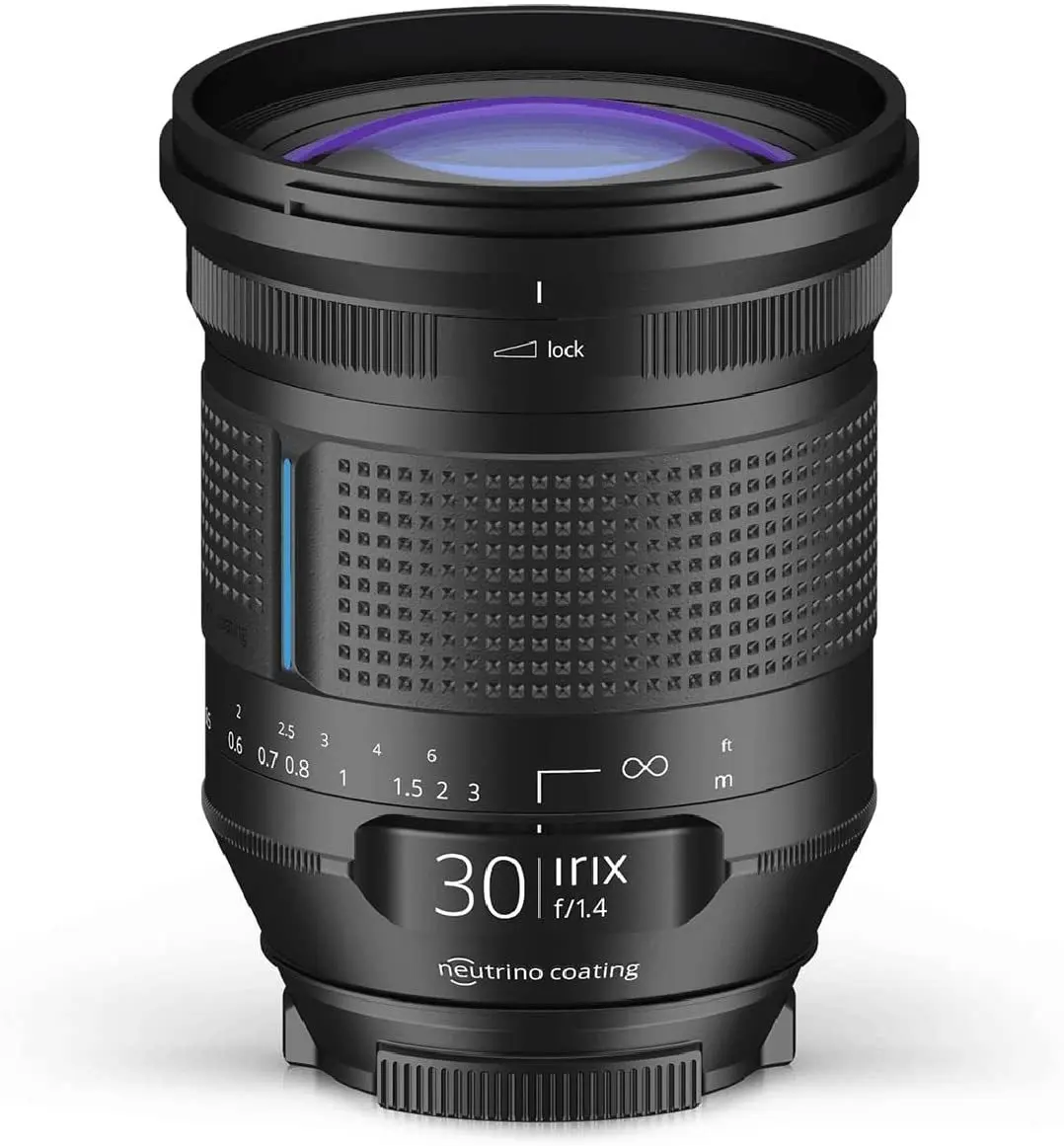

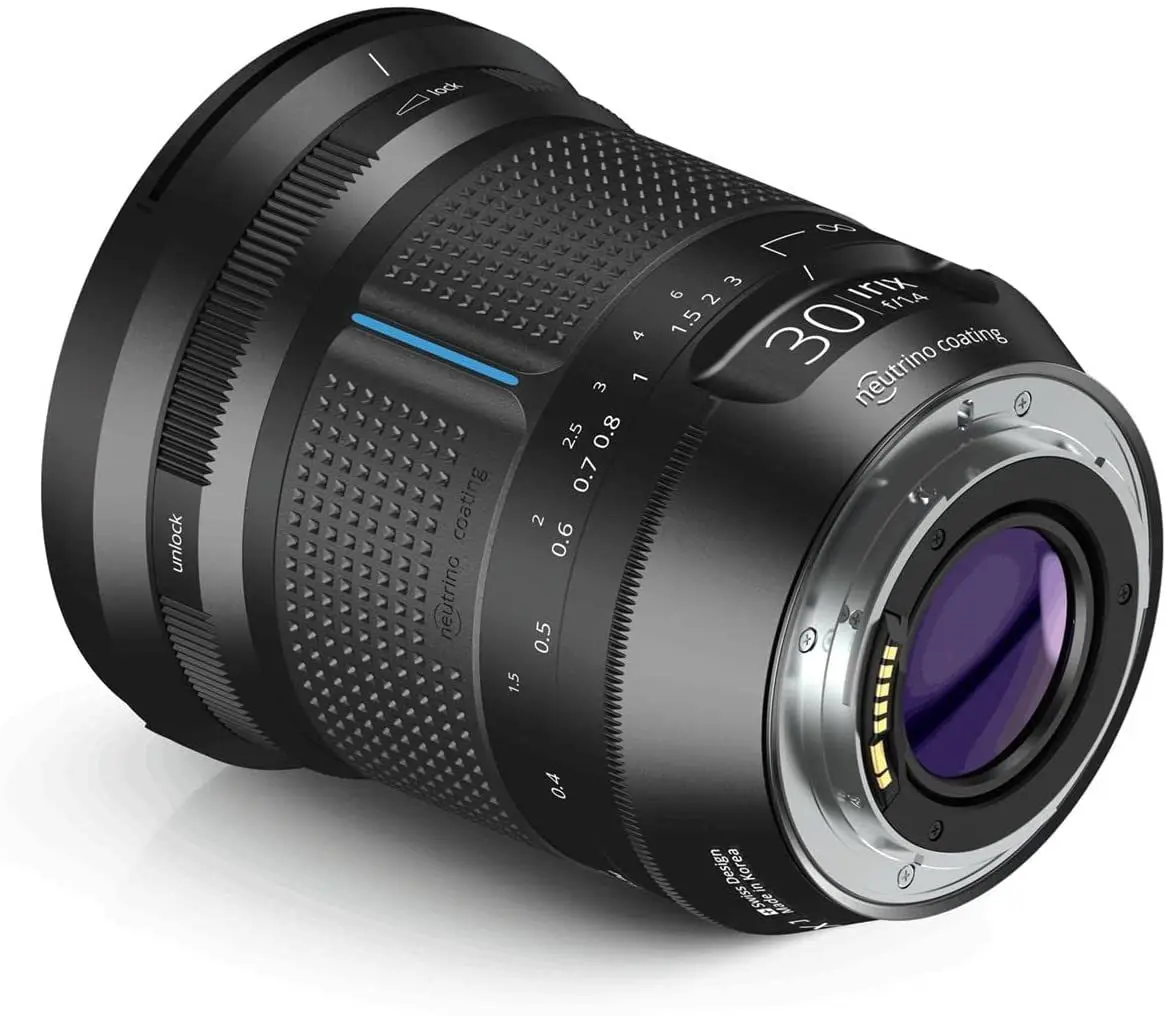

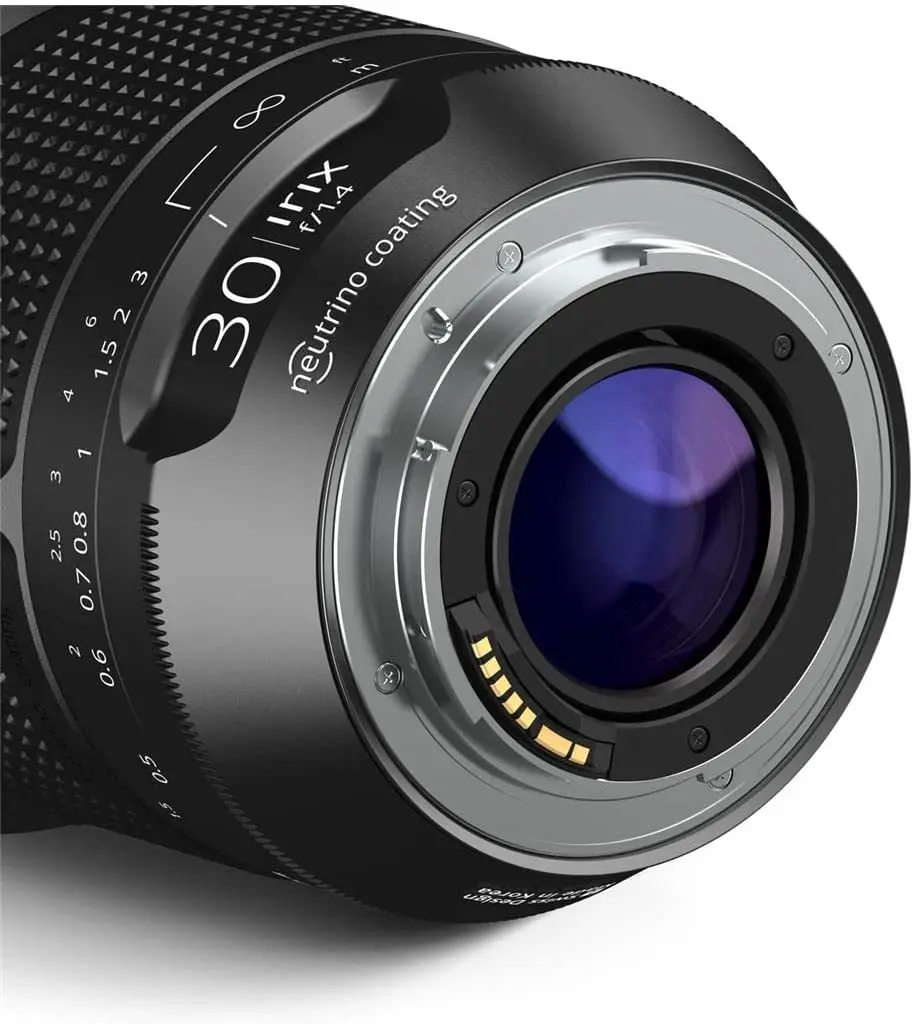

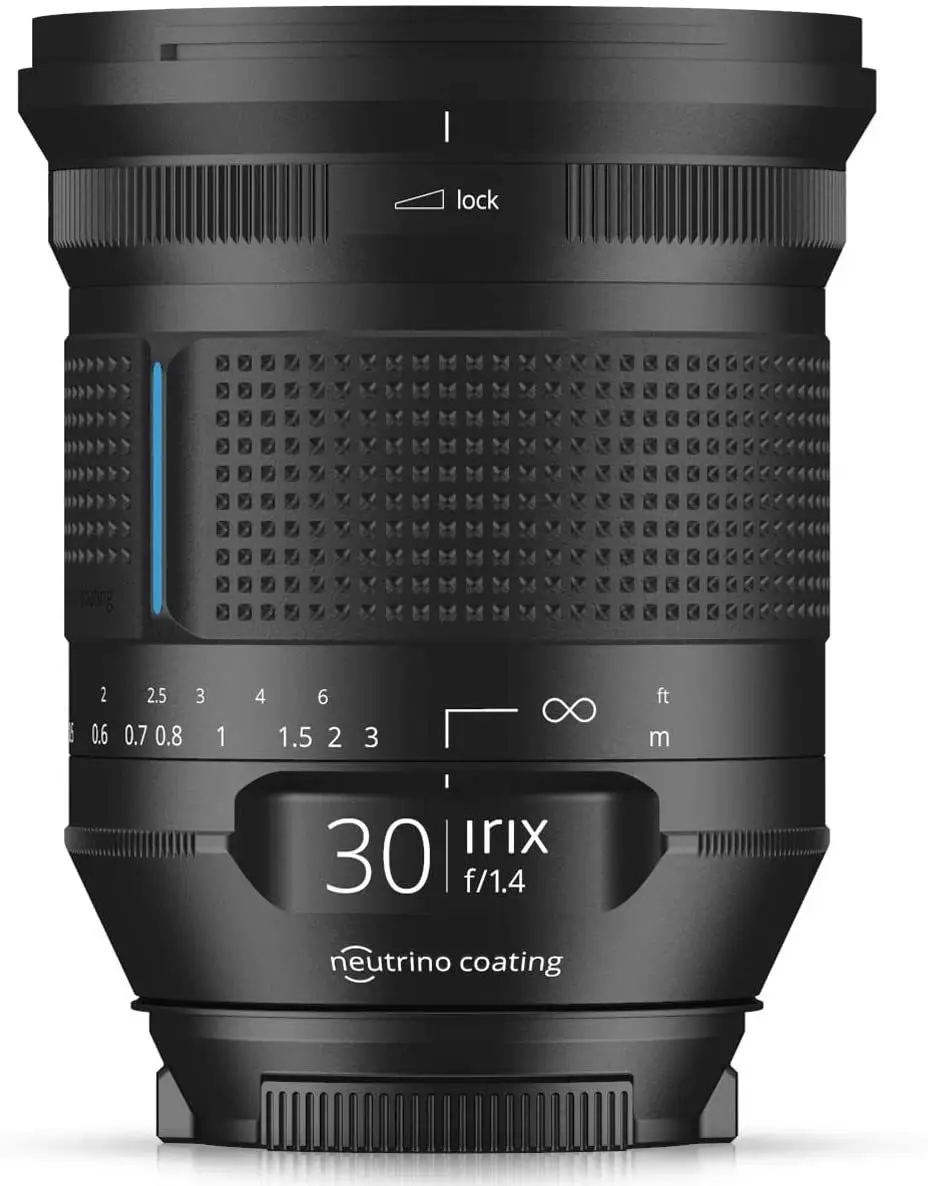

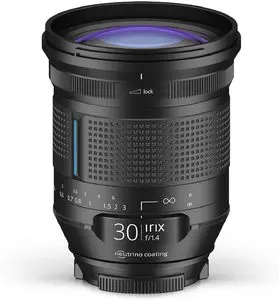

Irix Lens 30mm f/1.4 Dragonfly (Canon EF)

Overview

The 30mm f1.4 Dragonfly Lens for Canon EF from IRIX features an optical design based on the IRIX 30mm Cine model, intended for the highly demanding film industry market. The entire optical structure of the lens is identical in both the still and cine versions, designed to emphasize the vividness of the image. This lens features a modern optical design that includes three ultra-low dispersion glass elements, two high reflectance glass elements and one aspherical element. There is a total of 13 elements in 11 groups to provide sharp details, vivid colors, and ultra-low distortion. In addition, the 11-blade design aperture with rounded edges ensures a pleasant and vivid background bokeh. The elements feature Neutrino multicoating for optimal light transmission without lens flare.

The premium construction materials ensure operation in extreme environmental conditions, and a system of seals located in key places of the lens resist moisture and dust, protecting the cleanliness of the mirror chamber and the sensor of the camera. The manual focus design incorporates rear focusing so that the lens does not change dimensions while focusing. A special focusing ring with a characteristic shape is hallmark of IRIX design, and special texturing and properly selected rubber material and the dedicated emboss makes it easy to feel the ring's position. The Focus Lock function allows the focusing ring to be locked in a specific position, especially useful when keeping a specific camera-to-subject distance while zone-focusing, or when keeping perfect focus at infinity in landscape photography or astrophotography.

The IRIX 30mm f/1.4 lens can be controlled directly from the camera, making semi-automatic modes (PASM) and data recording in Exif format available. The use of electronics also enables the lens to be equipped with a focus confirmation system in enabled camera bodies. The camera will report the correct focus setting, either in the form of an icon in the viewfinder or as a sound, when the focus is correctly set.

• Fast f/1.4 aperture
• Aperture control from the camera
• 61.9° field of view
• Manual focus design
• Focus lock function
• 140° focus ring rotation
• 86mm filter mounting front thread
• Reinforced internal structure based on metal elements
• Scratch-resistant lens finish
• Anti-slip focusing ring with special finish for easy operation
• Engraved markings filled with UV-reactive paint
• Sealed to protect against dust and water

Key Features

• Canon EF-Mount Lens / Full-Frame Format
• Aperture Range: f/1.4 to f/16
• Neutrino Lens Coating
• Manual Focus with Focus Lock
• Weather Sealed; Rubber Mount Seal
• Minimum Focus Distance: 13.38"
• Rounded 11-Blade Diaphragm
• 3 ULD, 2 HR, 1 Aspherical Glass Elements
• 13 Elements in 11 Groups

In the Box

• IRIX 30mm f/1.4 Dragonfly Lens for Canon EF
• Lens Hood
• 86mm Front Cap
• 2 x IRIX Rear Cap for Canon EF-Mount Lenses
• Hard Case
