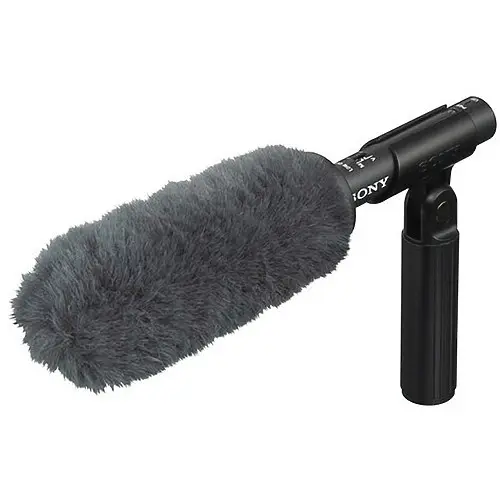

Sony ECM-VG1 Short Shotgun Microphone

Item No. 80013867

26222-00217-00

Category: / Accessories

$449.00

Description

Overview:

With an ultralightweight body and smooth tone, the Sony ECM-VG1 shotgun microphone offers strong, clean output signal for event video shoots, indie film production, TV and documentary shooting, court room depositions, and more. Plus, at a mere 2.3 ounces, it can be placed atop a camcorder or mounted on a boompole with virtually no impact on the weight of the rig.

The ECM-VG1 features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule, resulting in intelligible voice pickup even in noisy environments. The microphone's wide, flat frequency response yields natural, accurate signal reproduction with crisp detail and minimal coloration.

The ECM-VG1 runs on 40 to 52 VDC phantom power, making it compatible with a variety of professional camcorders, multitrack field recorders, and portable audio recorders. The supplied furry windshield delivers up to 20 dB of wind noise reduction for high-quality audio capture in outdoor environments. It also includes microphone spacers and a mic holder to accommodate camera-mount and stand-/boompole-mount configurations.

Key Features

For Indie Films, TV & Documentaries
Phantom Powered
Switchable Low-Cut Filter
High Sensitivity Requires Less Gain
Smooth Tone for Voice Reproduction
Ultralightweight Metal Body
Furry Windshield Minimizes Wind Noise
XLR Cable, Mic Spacers & Mic Holder

Technical Details:

Form Factor+C23A1:C19	:	Stand/Boom Mount
Sound Field	:	Mono
Operating Principle	:	Pressure Gradient
Capsule	:	1 x Electret Condenser
Polar Pattern	:	Supercardioid
Orientation	:	End Address
Circuitry	:	Solid-State
Pad	:	None
High-Pass Filter	:	Yes
Tone Adjustment	:	None
Indicators	:	None
On-Board Controls	:	High-Pass Filter
Windscreen	:	Windsock/Windjammer (Included)
Frequency Range	:	40 Hz to 20 kHz
Maximum SPL	:	127 dB SPL (1 kHz, 1% THD)
Impedance	:	60 Ohms ± 20% at 1 kHz (Balanced)
Sensitivity	:	-33 dBV/Pa at 1 kHz
Dynamic Range	:	109 dB
Signal-to-Noise Ratio	:	76 dB A-Weighted (1 kHz)
Equivalent Noise	:	Level 18 dB SPL
Output Connectors (Analog) 1 x	:	XLR 3-Pin Male
Headphone Connector	:	None
Cable Length	:	19.69" / 50 cm
Operating Voltage	:	40 to 52 V (Phantom Power)
Operating Current Consumption	:	2.5 mA
Mounting	:	Mic Clip (Included)
Construction	:	Material Metal
Operating Temperature	:	32 to 122°F / 0 to 50°C
Storage Temperature	:	-4 to 140°F / -20 to 60°C
Dimensions	:	ø: 0.79 x L: 8.27" / ø: 20 x L: 210 mm
Weight	:	2.33 oz / 66 g

In the Box

Sony ECM-VG1 Short Shotgun Microphone
Furry Windshield
2 x Stand Adapters

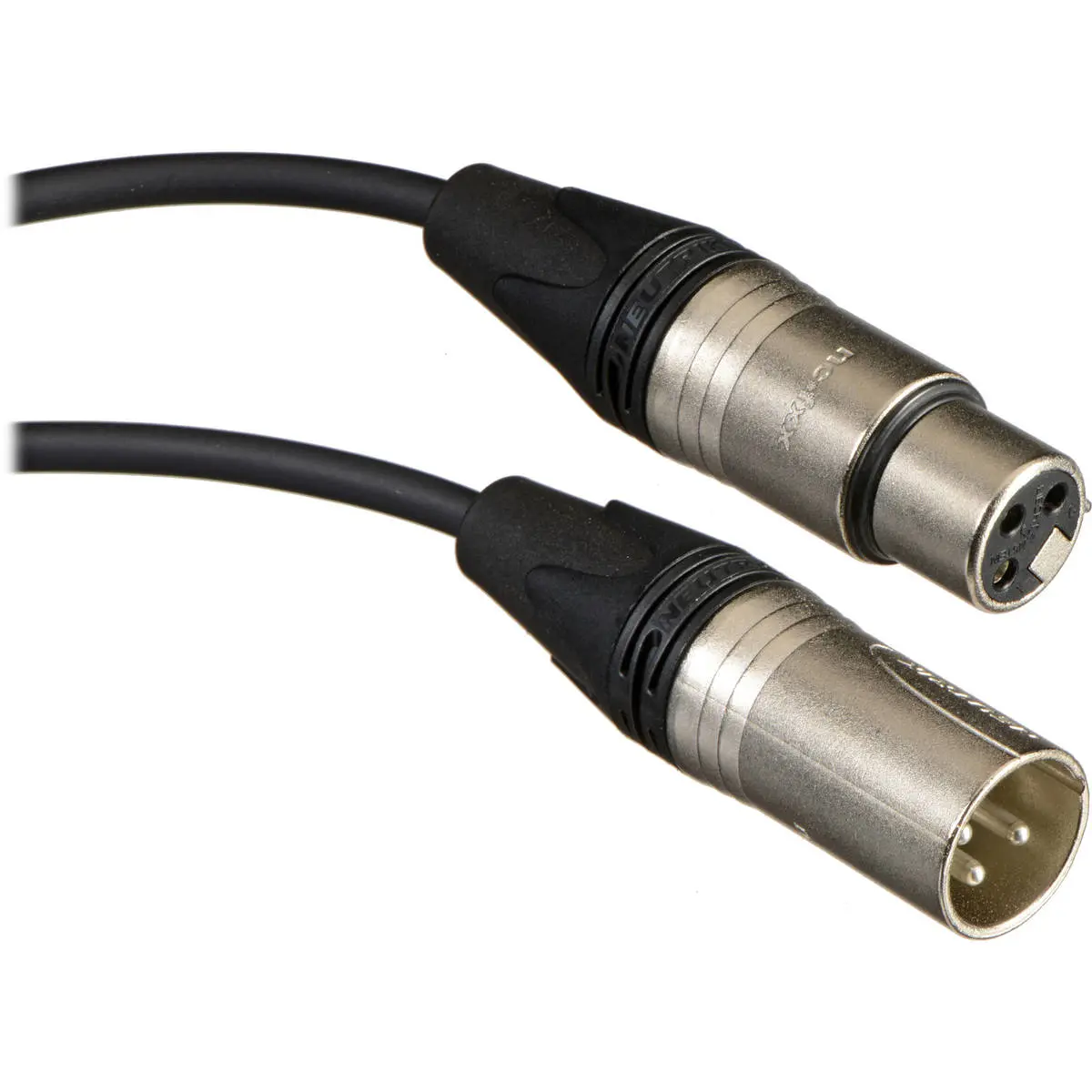

XLR Cable (19.7")
Microphone Spacer
Microphone Holder
