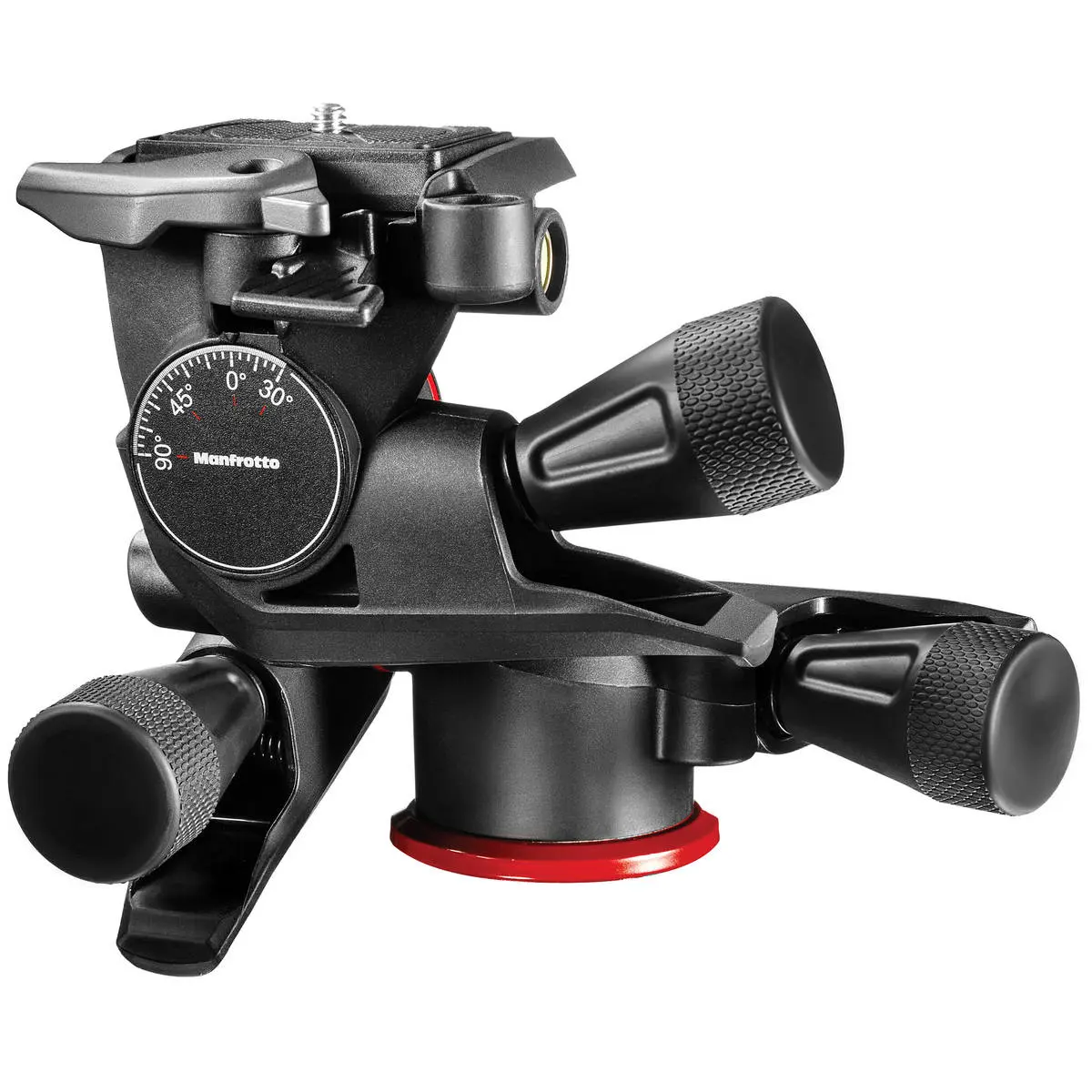

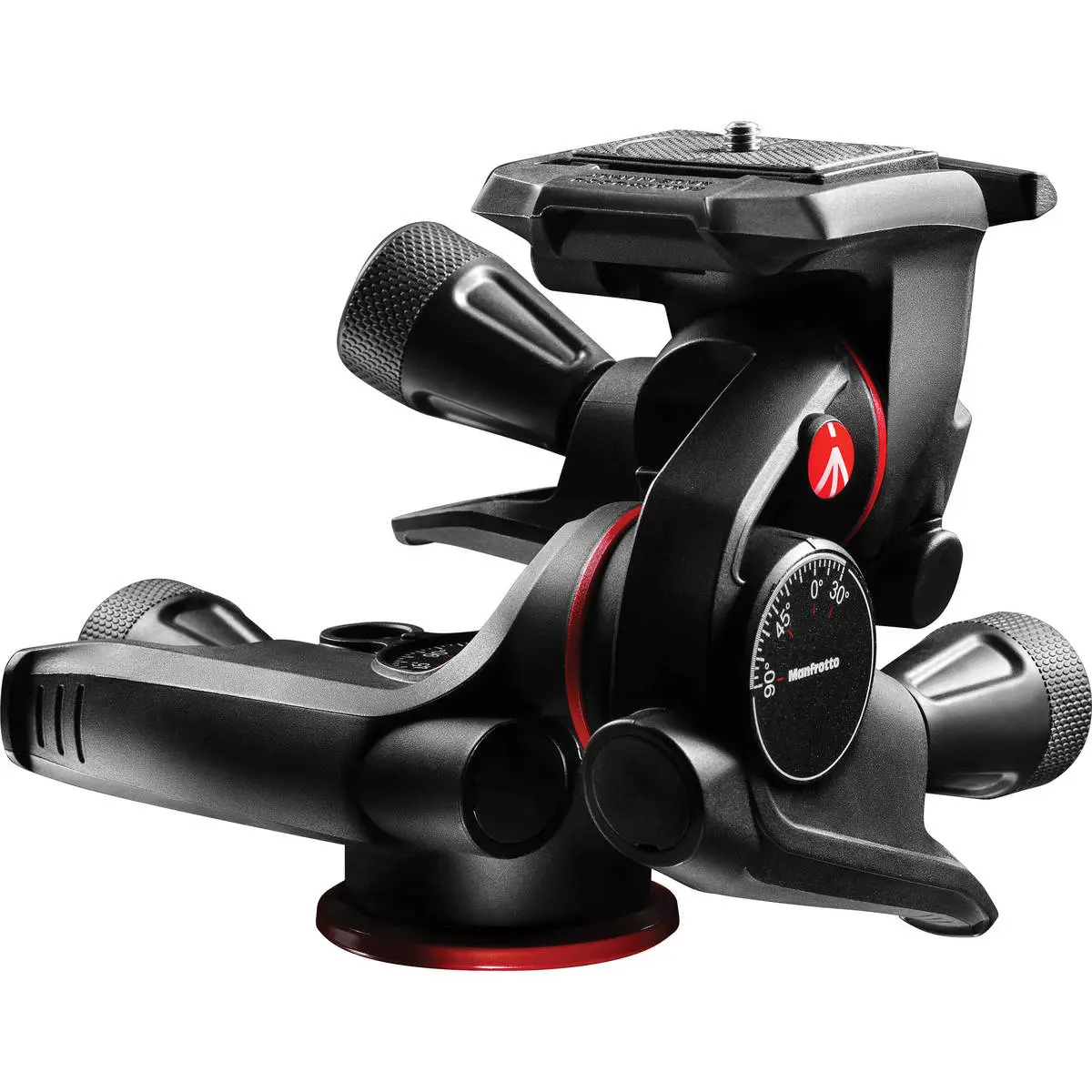

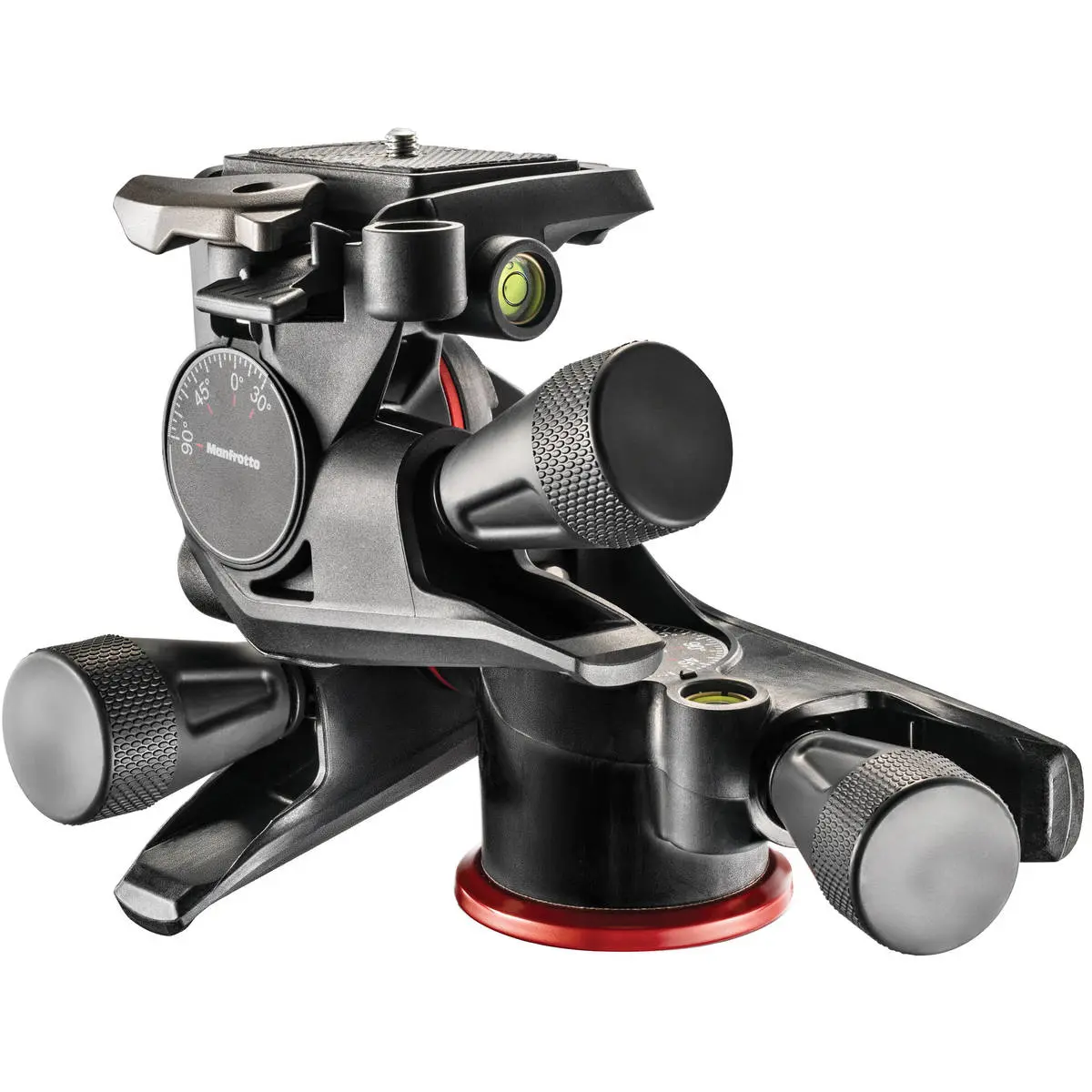

Manfrotto Xpro Geared 3-Way Head MHXPRO-3WG

Overview

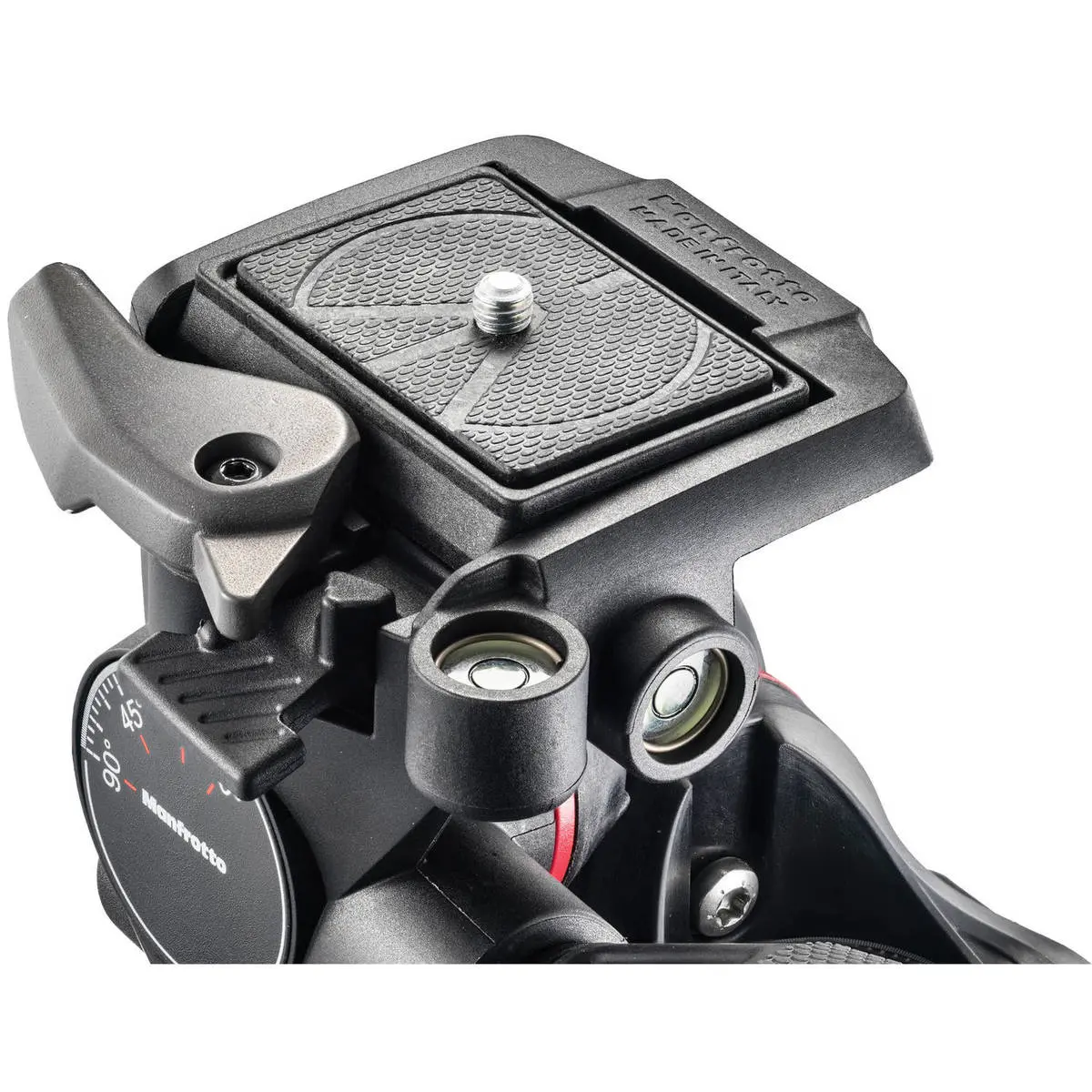

This XPRO 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

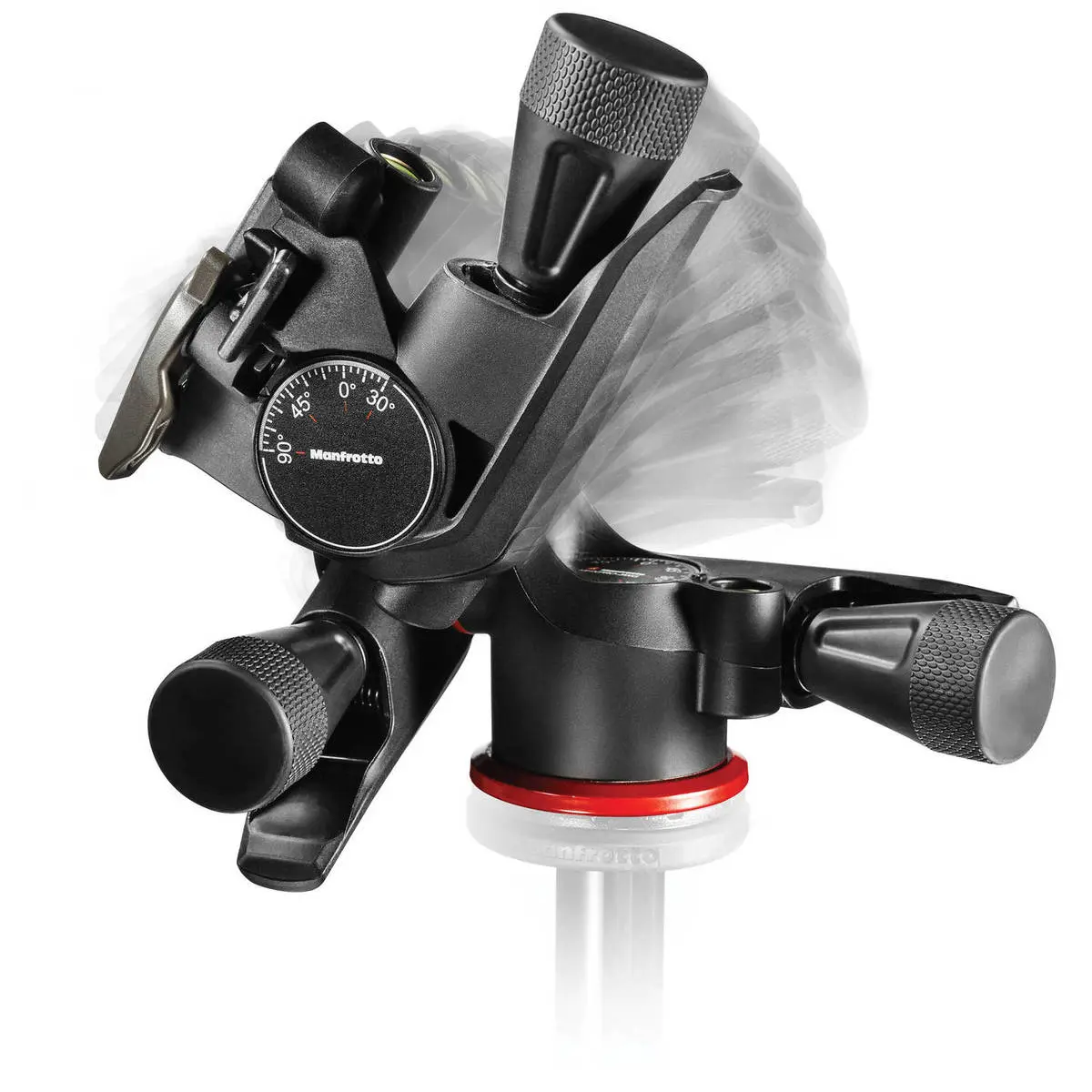

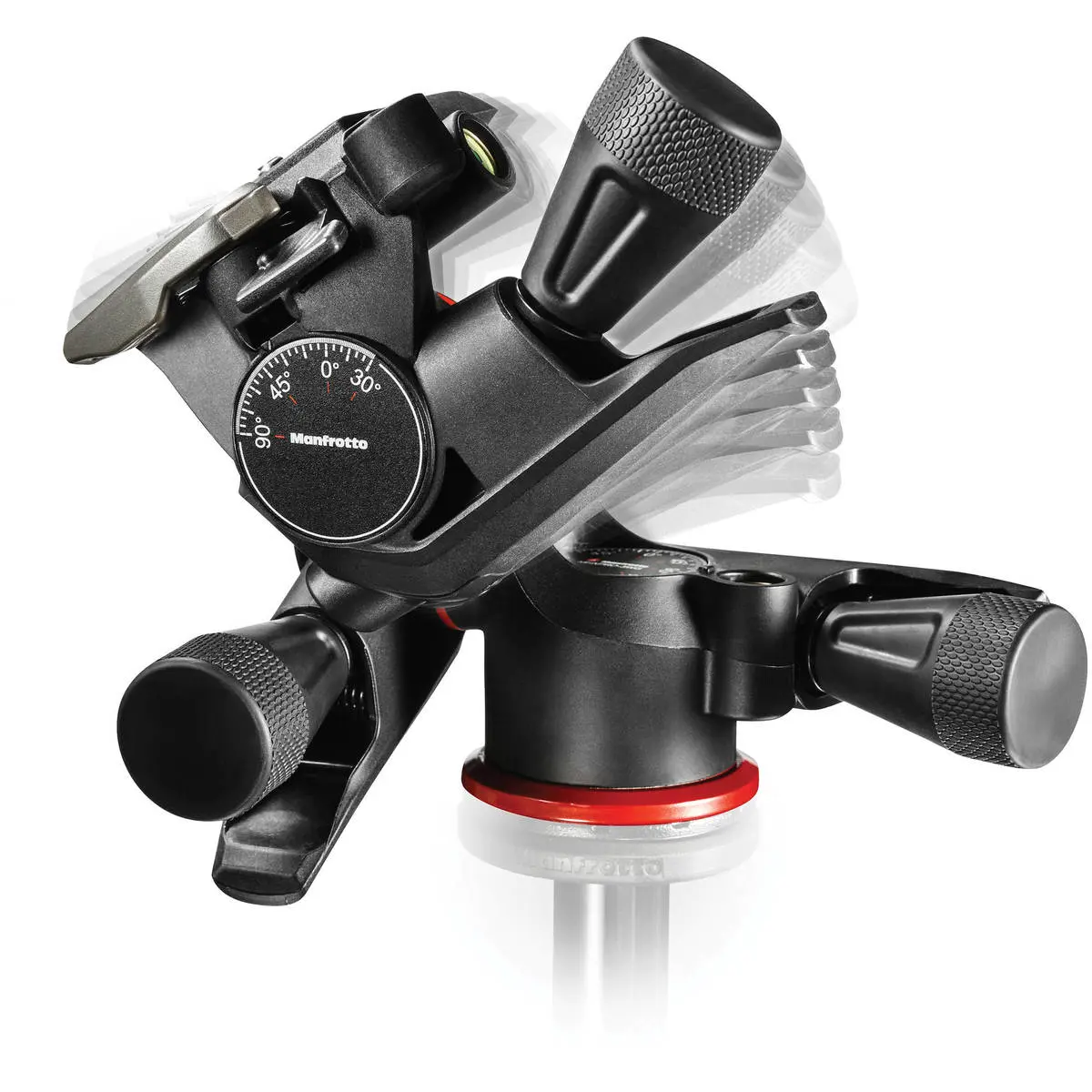

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, spring-clamp controls. Squeezing each clamp's two handles allows the corresponding movement to be rapidly adjusted, and once the handles are released, the adjustment is locked into place. One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments, which help to ensure that any device mounted to this XPRO 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

To further promote fast and repeatable device positioning, this XPRO 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.

• Compatible with tripods or support systems that feature a 3/8"-16 mount
• Can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation
• Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual spring-clamp controls
• Squeezing each clamp's two handles allows the corresponding rotation, backwards and forwards tilt, or portrait orientation tilt to be rapidly adjusted; and once the handles are released, the adjustment is locked into place
• One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments for precise device positioning
• Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning

Key Features:

• Load Capacity: 8.8 lb
• 3 Independent Movements with Locks
• Spring-Clamp Controls for Fast Movements
• Integrated Incremental, Geared Movements
• 90° Forwards and 20° Backwards Tilt
• Up to 90° Portrait Angle Tilt
• 360° Rotation, Three Bubble Levels
• RC2 Quick Release Cam Lock
• 200PL-14 Quick Release Plate
• 1/4"-20 Mount, Non-Slip Surface

Technical Details

In the Box

• Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate
• 200PL-14 Quick Release Plate
