Manfrotto MVH502AH Pro Video Head with Flat Base

Overview

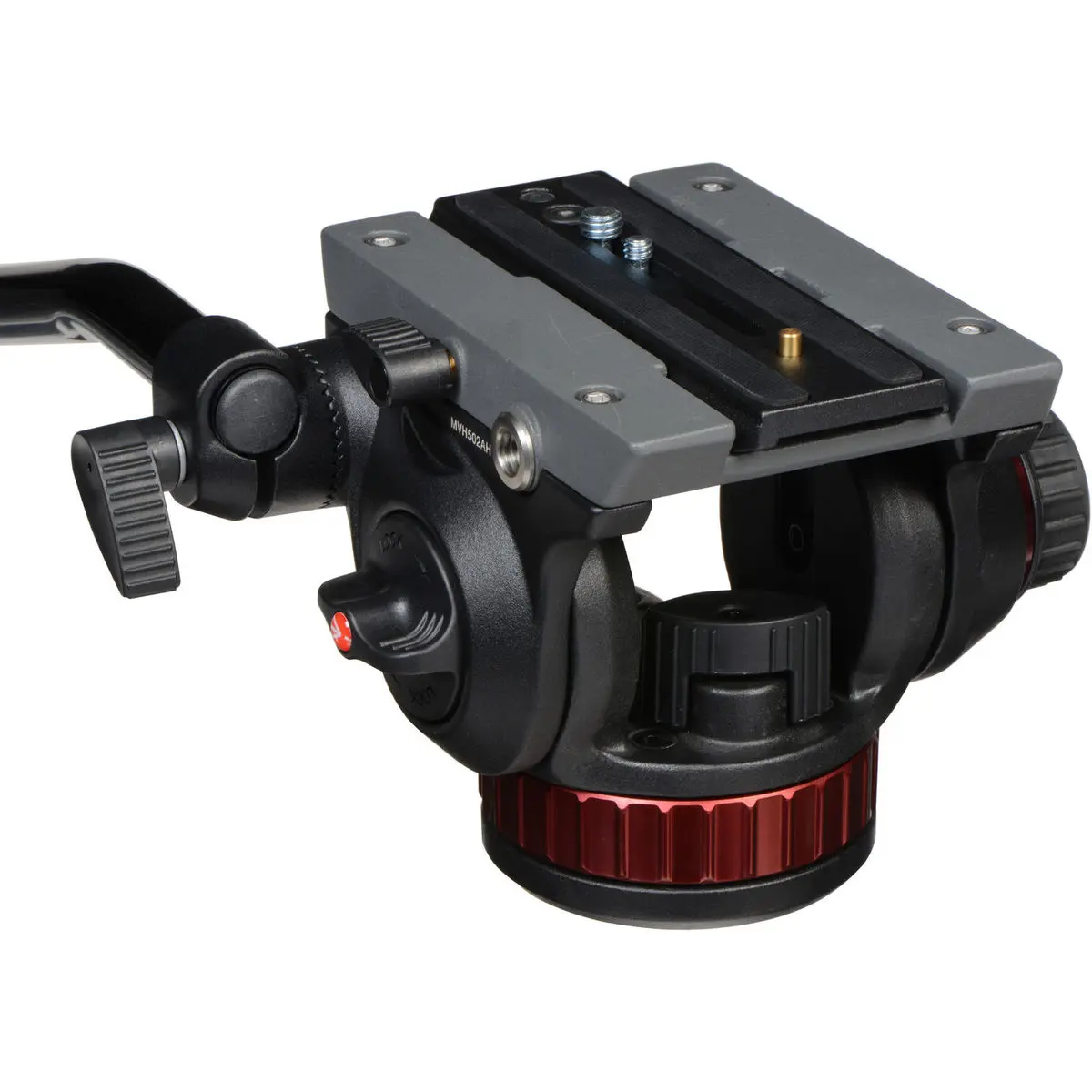

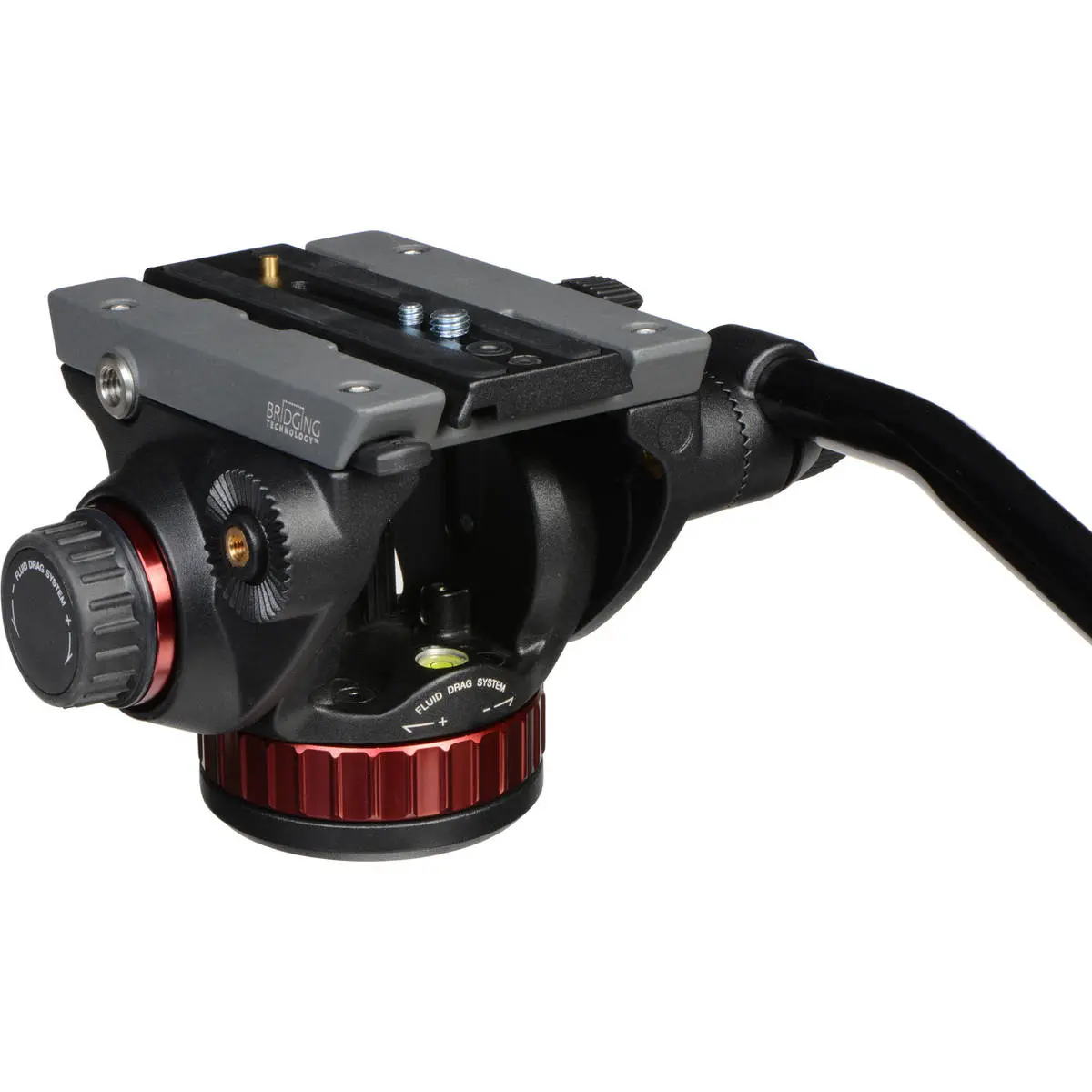

The Manfrotto 502AH Pro Video Head with Flat Base is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads). This head is designed for executing cinematic moves with compact camcorders and DSLR cameras. The 502AH comes in two versions—the "AH" flat base version with 3/8"-16 mounting hole such as this one, and the "A" ball base version which is separately available.

The weight capacity is 22 lb and the counterbalance supports 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads due to matte boxes or DSLR rig configurations.

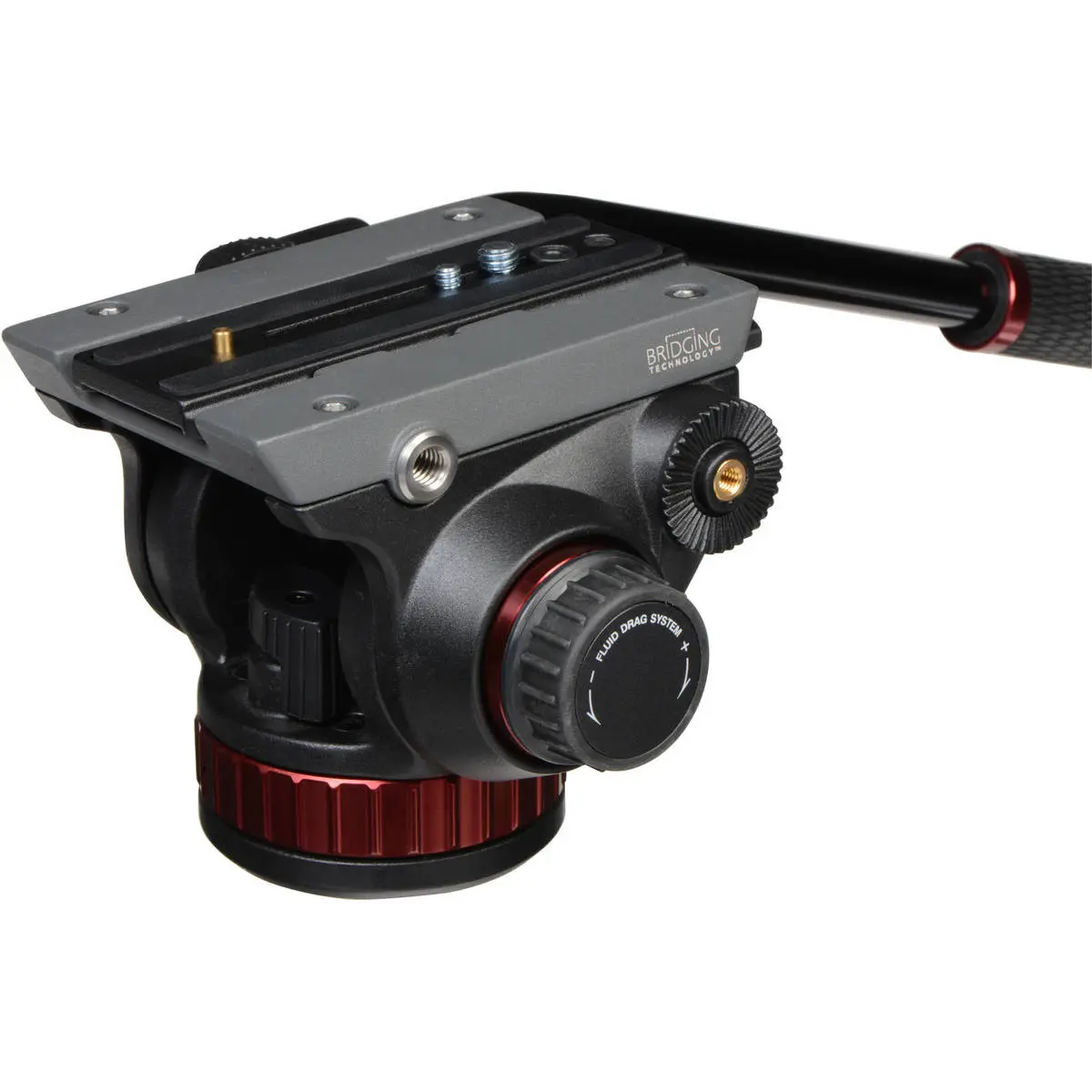

The bridging technology ensures that the pan friction control is intuitive and easy to set but is also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the maximum level. This allows you to operate the head in a confident, smooth manner using the included pan bar.

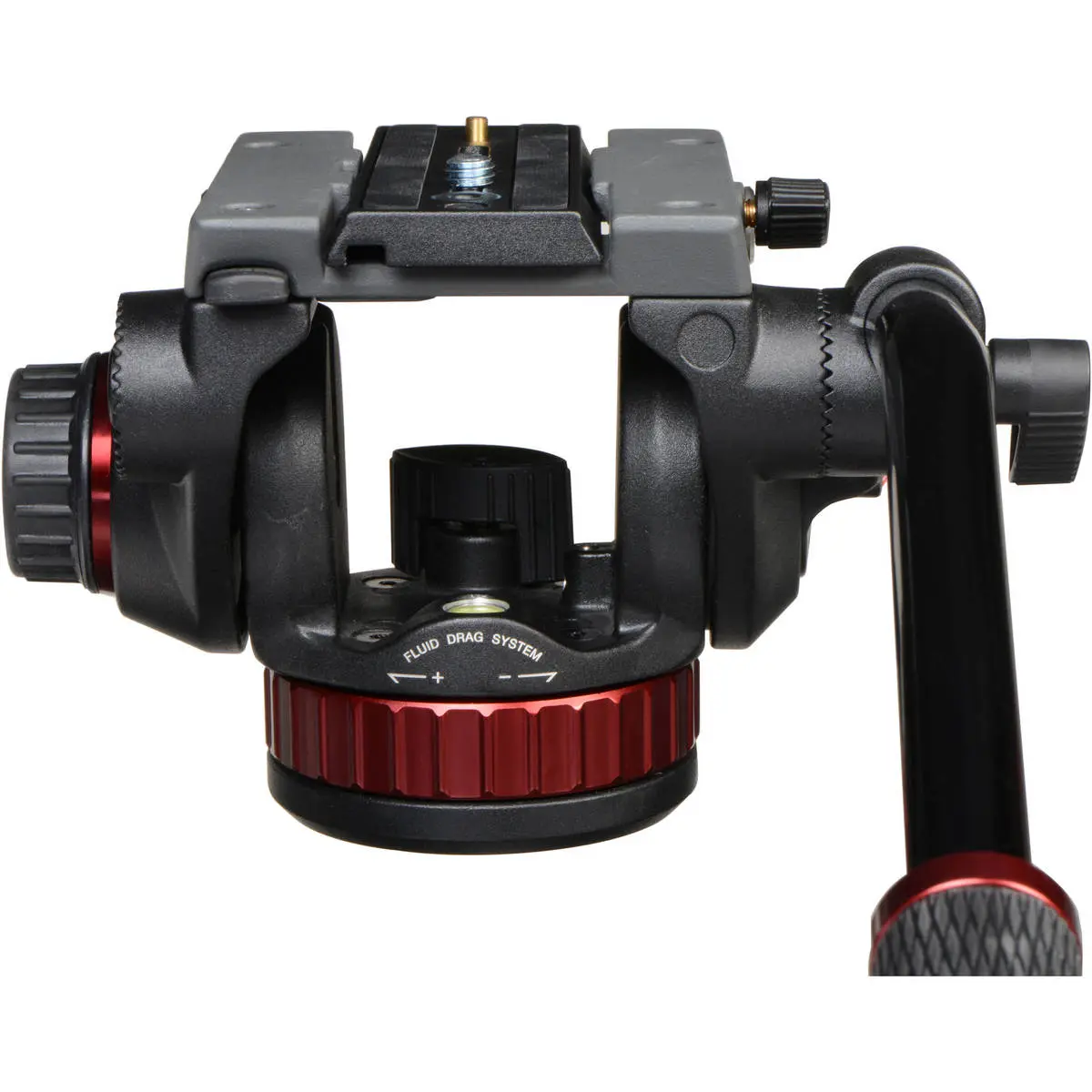

• Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
• Sliding quick release plate secured by a secondary safety system
• The flat base has a 3/8"-16 female threaded mounting hole for attaching to tripods, sliders, and other platforms

Key Features:

• Flat Base with 3/8"-16 Mounting Thread
• 22 lb Weight Capacity
• Counterbalance Supports 8.8 lb
• Bridging Technology
• Spring-Loaded Counterbalance
• Continuously Adjustable Pan/Tilt Drag

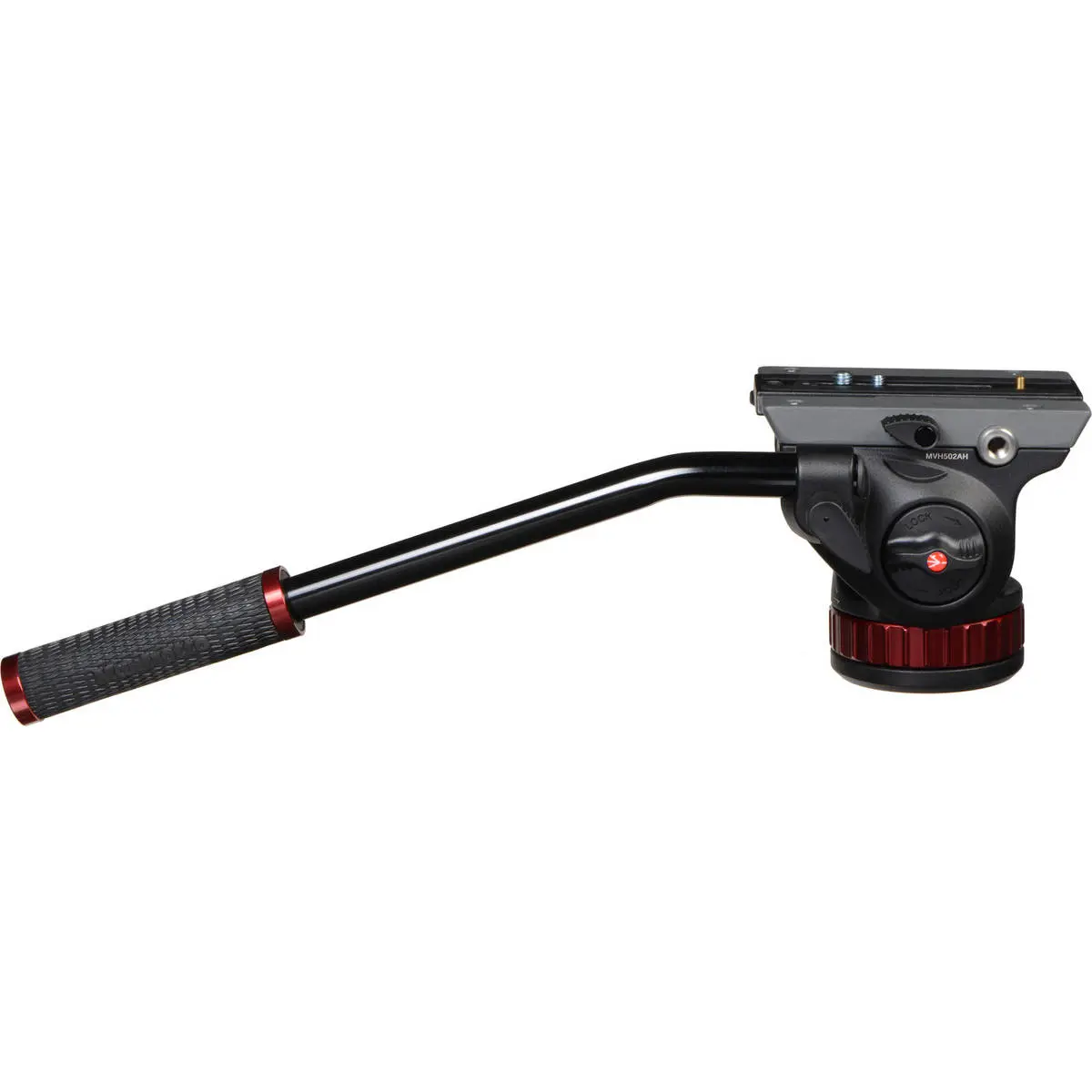

• Pan Bar & Sliding Plate Included

Technical Details

In the Box

• Manfrotto 502AH Pro Video Head with Flat Base
• Pan Bar
• Manfrotto 504PLONG Long Quick Release Mounting Plate
