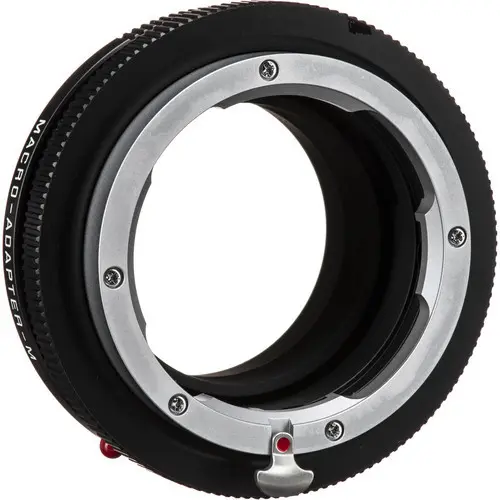

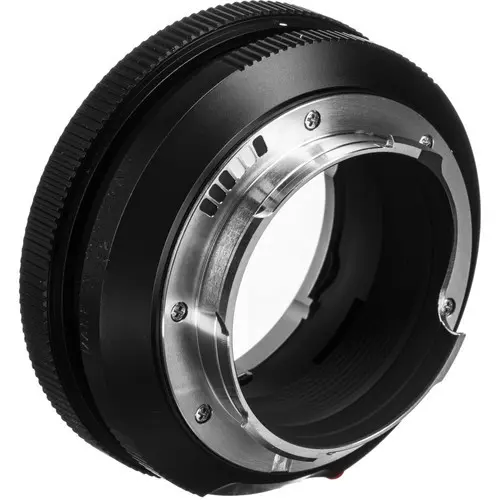

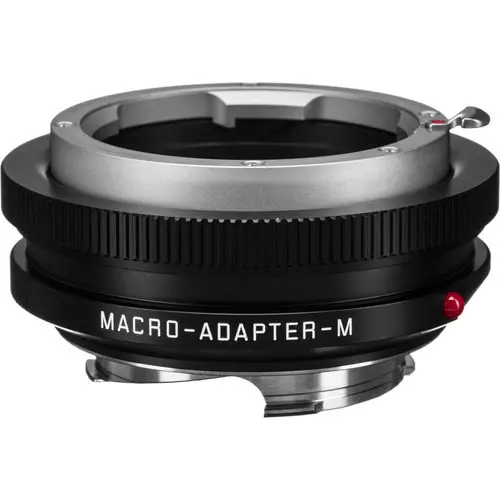

Leica Macro-Adapter-M (14652)

Overview

The Leica Macro-Adapter-M is placed between the camera and M-mount lens to increase the lens-to-sensor distance and achieve maximum reproduction ratios up to 1:2 for close-up shooting. Its design incorporates a helical screw system, which can be used to vary the adapter's extension length between 0.7-1.2" for greater flexibility in setting a closer focusing distance than the lens natively allows as well as increasing the reproduction ratio. The adapter is designed for use on Leica cameras featuring a live view function (such as the M Typ 240) and lenses with focal lengths greater than 28mm.

Increases lens-to-sensor distance, shortens minimum focusing distance, and helps to achieve greater reproduction ratios for close-up shooting.
Helical system permits a variable extension length between 0.7-1.2".
Specifically designed for the Leica Macro-Elmar-M 90mm f/4 lens, this adapter provides a 1:2 reproduction ratio, with a minimum focusing distance of 16.1", and infinity focusing can be maintained with the lens in its collapsed position.
When used on lenses with focal lengths of at least 50mm, reproduction ratios of 1:2 can be achieved. With wider lenses, larger ratios are possible. It is not recommended for use on lenses with focal lengths wider than 28mm.
Compatible with Leica M cameras featuring a live view function, such as the M Typ 240

Key Features

• For Leica M-Mount Lenses
• Enables Max. Reproduction Ratio of 1:2
• Shortens Minimum Focusing Distance
• Increases Lens-to-Sensor Distance
• Variable Extension Between 0.7-1.2"
• Integrated Helical Screw System
• For 28mm and Longer Focal Lengths
• Designed for Cameras with Live View
• Ideal for Macro-Elmar-M 90mm f/4 Lens

In the Box

• Leica Macro-Adapter-M
• Front and Rear Caps
• Soft Pouch
